HE400VG Turbo for Cummins ISX15 / X15 | Replaces OEM 5459710 | Direct Replacement VGT | 2016-2025
The Diesel Power Source® HE400VG is a direct replacement VGT turbocharger for 2016-2025 Cummins ISX15 and X15 engines. This turbo replaces the factory Holset HE400VG (OEM part number 5459710, 6382093RX, 5358001, 5358454, and 5458936) with an upgraded design that uses forged machined compressor wheels (FMW), improved engineering to address known OEM weak points, and a brand-new electronic actuator (not remanufactured). Choose between the standard 67mm compressor (HE467VG) or the DPS-exclusive 70mm compressor (HE470VG) for applications above 500 HP.
Every DPS HE400VG turbo ships with no core charge, a new intake air temperature sensor, new gaskets, and installation hardware. Verify your ESN with DPS before ordering to confirm correct fitment for your engine configuration.
Important: This turbo does NOT fit HE451VE applications. The HE451VE uses a different compressor cover and actuator configuration that is not compatible with this turbocharger. If your current turbo is an HE451VE (OEM PN 2882112 or 3796351), see the DPS HE451VE turbo page instead.
Compressor Size Options: 67mm vs 70mm
| Turbo Option | Compressor | Max HP | Recommended Use |
|---|---|---|---|
| HE467VG (67mm) | 67mm inducer, 7-blade FMW | 550-625+ HP | Stock replacement, mild tuning, daily work trucks, fleet applications |
| HE470VG (70mm) | 70mm inducer, 7-blade FMW | ~675 HP | Builds over 500 HP, performance tuning, heavy hauling with increased fueling |
The 67mm compressor is the largest size available on the factory Holset HE400VG. The 70mm compressor is exclusive to Diesel Power Source® and is not available from OEM or other aftermarket suppliers. Both options use the same turbine wheel and share the same VGT housing and actuator.
Why Replace Both the Turbo and Actuator Together
Diesel Power Source® strongly recommends replacing the turbo and actuator as a pair. Installing a new turbo with an old actuator (or a new actuator with a worn turbo) can cause VGT calibration errors, reduced performance, and premature component failure. Each DPS HE400VG turbo ships with a brand-new, pre-calibrated electronic actuator specifically matched to the turbo for proper VGT control from the first startup.
Specifications
| Specification | Detail |
|---|---|
| Fitment | 2016-2025 Cummins ISX15 and X15 (CM2250, CM2350, CM2450) |
| Compressor Options | 67mm FMW (HE467VG) or 70mm FMW (HE470VG - DPS exclusive) |
| Compressor Wheel Type | Forged Machined Wheel (FMW) - 7 blade |
| Actuator | Brand-new electronic VGT actuator, pre-calibrated (not remanufactured) |
| Core Charge | None |
| Jake Brake / Engine Brake | Fully preserved |
| Emissions Config | EGR (emissions intact) or Non-EGR (deleted trucks) |
| Primary OEM PN Replaced | 5459710 (OEM new unit HE400VG) |
| All OEM Part Numbers | 5459710, 6382093RX, 5358001, 5358454, 5458936 |
| Compatible Platforms | Freightliner, Peterbilt, Kenworth, Volvo, International, Western Star |
| Warranty | 1 Year / 30,000 Miles |
| ESN Verification | Required before shipment |
What's Included
- HE400VG VGT turbocharger with forged machined compressor wheel (67mm or 70mm)
- Brand-new electronic VGT actuator (not remanufactured), pre-calibrated
- New intake air temperature sensor
- New gaskets for installation
- No core charge required
DPS HE400VG vs OEM vs Remanufactured
| Feature | DPS HE400VG | OEM Holset | Remanufactured |
|---|---|---|---|
| Compressor Wheel | Forged Machined (FMW) | Cast | Reused or cast |
| Compressor Size Options | 67mm or 70mm (exclusive) | 67mm only | 67mm only |
| Actuator | Brand new, pre-calibrated | New | Remanufactured |
| Core Charge | None | Yes | Yes (typically) |
| Sensor | New air intake temp sensor | Varies | Reused |
| OEM Weak Points | Addressed in engineering | Present | Present |
| Warranty | 1 Year / 30,000 Miles | Varies | Varies |
OEM Part Numbers Replaced (5459710 Family)
This Diesel Power Source® HE400VG turbocharger replaces the following Holset and aftermarket part numbers used on 2016-2025 Cummins ISX15 and X15 engines. The primary OEM part number mechanics search for this turbo is 5459710.
| OEM / Aftermarket Part Number | Notes |
|---|---|
| 5459710 | Primary OEM new-unit HE400VG - CM2350 and CM2450 platforms |
| 6382093RX | OEM remanufactured HE400VG / VGT electronic actuator cross-reference |
| 5358001 | HE400VG variant |
| 5358454 | HE400VG variant |
| 5458936 | HE400VG variant |
| 100-040-000 | Aftermarket interchange number |
Fitment varies by engine configuration. Verify your ESN with DPS before ordering. DPS will confirm the correct configuration for your engine before the order ships.
Cummins X15 HE400VG Turbo Replacement Guide
The Holset HE400VG (OEM PN 5459710) is the factory variable geometry turbocharger used on Cummins X15 and ISX15 engines built from 2016 through 2025. Over time, these turbos wear due to heat cycling, electronic actuator failure, soot buildup in the VGT vanes, or bearing deterioration. When replacing a Cummins ISX15 / X15 turbo, it is important to choose a replacement that maintains full OEM VGT function while addressing the known durability issues in the factory design.
The Diesel Power Source® HE400VG is engineered as a direct bolt-on replacement with performance-minded upgrades including forged machined compressor wheels for improved airflow and durability, and a DPS-exclusive 70mm compressor option for builds exceeding 500 HP.
ISX15 / X15 VGT Fault Codes - Common Codes That Lead to Turbo Replacement
VGT actuator fault codes on ISX15 and X15 engines are frequently misdiagnosed as actuator-only failures. In many cases the underlying cause is a worn or sticking turbo combined with actuator overload. If your engine is showing any of the codes below, the turbo and actuator should be evaluated together before ordering replacement parts.
| Engine / ECM | Cummins Code | SPN / FMI | Meaning |
|---|---|---|---|
| ISX15 CM2250 | 2449 | 641 / 13 | VGT Actuator Controller - Out of Calibration |
| ISX15 CM2250 | 2387 | 641 / 7 | VGT Actuator Driver Circuit (motor) - Not Responding |
| ISX15 CM2350 | 1894 | 641 / 9 | VGT Actuator Driver Circuit - Abnormal Update Rate |
| ISX15 CM2350 | 2198 | 641 / 11 | VGT Actuator Driver Circuit - Root Cause Not Known |
| X15 CM2450 | 2449 | 641 / 13 | VGT Actuator Controller - Out of Calibration |
| X15 CM2450 | 6432 | 641 / 14 | VGT Actuator Controller - Special Instructions |
| X15 CM2450 | 4956 | 6713 / 13 | VGT Actuator Software - Out of Calibration |
| X15 CM2450 | 5177 | 6713 / 9 | VGT Actuator Software - Abnormal Update Rate |
| Most platforms | (varies) | 641 / 12 | VGT Actuator - Bad Intelligent Device or Component |
Code 2449 (SPN 641 / FMI 13) is the most common cross-platform VGT code - it appears on both CM2250 and CM2450 engines with the same meaning. Replacing only the actuator when this code is present often results in repeat failure. DPS includes a brand-new matched actuator with every turbo to break that cycle. For a full troubleshooting guide on these codes, see: X15 Turbo Actuator Codes - What They Mean and When to Replace
ISX15 / X15 Turbo and VGT Problems (Common Symptoms)
If you are experiencing any of the following on your Cummins ISX15 or X15, the factory HE400VG turbo (5459710) or VGT actuator may be failing:
- Low boost or underboost under load, especially on grades
- Slow spool or laggy turbo response compared to normal operation
- Excessive black smoke during acceleration or under load
- VGT actuator fault codes - SPN 641, 2449, 2387, 1894, 2198, 6432 (see table above)
- Whining, scraping, or unusual noise from the turbo
- Repeated boost-related check engine light events
- Increased EGTs at the same load and speed compared to previous readings
- Weak or inoperative Jake brake / engine brake
Because VGT actuator failures can mimic turbo failure (and vice versa), this turbo includes a brand-new electronic actuator to reduce the risk of repeat repairs. If you are replacing due to actuator-related fault codes, replacing both the turbo and actuator together is the most reliable repair path.

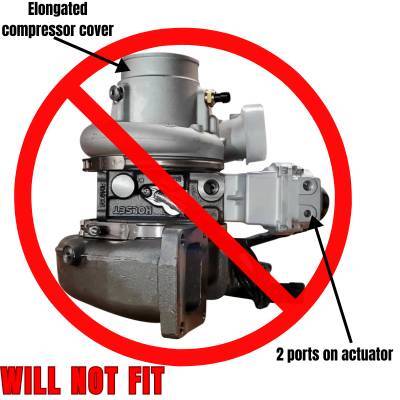

Fitment Verification Required: If your current turbo has BOTH of the following, this HE400VG turbo will NOT fit your application: (1) an elongated compressor cover, and (2) an actuator with two coolant ports. See the fitment verification image in the product gallery. If you are unsure, submit your ESN and our team will confirm the correct turbo for your engine.
Fitment
This turbo fits Cummins ISX15 and X15 engines on CM2250, CM2350, and CM2450 platforms (2016-2025). Engine build date and ECM platform must be confirmed via ESN before shipment.
Compatible with Class 8 trucks including Freightliner, Peterbilt, Kenworth, Volvo, International, and Western Star platforms equipped with ISX15 or X15 engines.
Not compatible with HE451VE applications. If your current turbo carries OEM part number 2882112 or 3796351, that is an HE451VE - a different turbo family. See the DPS HE451VE Turbo page.
Verify your ESN with DPS before ordering. DPS will confirm the correct configuration for your truck before the order ships. Contact us at 801-930-8404 or sales@dieselpowersource.com.
Save with the Turbo & Manifold Package
If your exhaust manifold is cracked, warped, or leaking alongside a failing turbo, consider the HE400VG Turbo & Exhaust Manifold Package. This bundle includes this same HE400VG turbo plus the DPS high-flow exhaust manifold and complete hardware kit at a package price. Replacing both at the same time reduces installation time and eliminates two of the most common ISX15 / X15 failure points in one job.
Warranty
This Diesel Power Source® HE400VG turbocharger is covered by a 1-year / 30,000-mile warranty (whichever occurs first) and is backed by our technical support team.
Warranty registration is required within 14 days of purchase. The QR code inside the product package links directly to the registration form, or register at dieselpowersource.com/install-instructions-product-support/.
Related ISX15 / X15 Products
- HE400VG Turbo & Exhaust Manifold Package (2016-2025)
- HE451VE Turbo for ISX15 (Older Platform - 2882112)
- ISX15 / X15 Non-EGR Exhaust Manifold
- ISX15 EGR Exhaust Manifold
- ISX15 Exhaust Manifold Hardware Kit
- S400 Complete Turbo Conversion Kit (Deleted Trucks)
- Blog: X15 Turbo Actuator Codes - What They Mean and When to Replace
Cummins® is a registered trademark of Cummins Inc. Diesel Power Source® is not affiliated with Cummins Inc.
Frequently Asked Questions
No. This turbo does NOT fit HE451VE applications. The HE451VE uses a different compressor cover and actuator configuration that is not compatible with this turbocharger. If your current turbo is an HE451VE, contact Diesel Power Source® before ordering so we can confirm the correct replacement for your engine.5459710, 5358001, 5358454, and 5458936. It is designed as a direct replacement turbo for many X15 engines while improving reliability and airflow.
The HE467VG (67mm) is the same size as the largest factory compressor and supports up to approximately 575 HP. It is ideal for stock replacement, mild tuning, and fleet applications. The HE470VG (70mm) is a DPS-exclusive upgrade that supports up to approximately 700 HP. It is recommended for builds over 500 HP with increased fueling. Both options use the same turbine wheel and VGT housing.
Yes. Every DPS HE400VG turbo ships with a brand-new electronic VGT actuator (not remanufactured). The actuator is pre-calibrated and matched to the turbo. DPS recommends always replacing the turbo and actuator together to avoid calibration issues and reduce the risk of repeat repairs.
This DPS HE400VG turbo replaces Holset part numbers 2882112, 3796351, 5459710, 5358001, 5358454, 5458936, and aftermarket interchange number 100-040-000. Fitment varies by engine configuration. DPS will verify your ESN before shipment to confirm compatibility.
This turbo fits most 2016–2024 Cummins ISX15 and X15 engines with CM2250 (some years) and CM2350 platforms. However, if your current turbo has both an elongated compressor cover AND an actuator with two coolant ports, this HE400VG will NOT fit. See the fitment verification image in the product gallery and submit your ESN for confirmation before ordering.
No. There is no core charge on this turbo. You do not need to return your old turbo.
