Diesel Power Source® HE400VG turbo and Non-EGR manifold package for Cummins ISX15 / X15, 2016-2025
HE400VG turbo and EGR exhaust manifold package for Cummins ISX15 / X15
HE400VG direct replacement VGT turbo included in the ISX15 / X15 turbo manifold kit
Read the reviews

Cummins ISX15 / X15 Turbo & Manifold Replacement Package | HE400VG Upgrade | 2016-2025

Diesel Power Source

SKU: SGT0490·MPN: SGT0490

$5,594.00
Upgrades
ViewNew OEM Cummins BELLOW PIPE | 3686752 (opens in a new tab)
1

Cummins ISX15 / X15 Turbo & Exhaust Manifold Replacement Package | HE400VG HE470VG | Replaces 5459710 | 2016-2025

The Diesel Power Source® HE400VG Turbo & Manifold Package combines a brand-new HE400VG VGT turbocharger with actuator, the DPS high-flow ISX15 / X15 exhaust manifold, and a complete exhaust manifold hardware kit into one kit for 2016-2025 Cummins ISX15 and X15 engines. This package replaces OEM turbo part number 5459710 (and related numbers 6382093RX, 5358001, 5358454, 5458936) and is designed for trucks that need both a turbo and manifold replacement in the same job, whether due to a failed VGT turbo, a cracked exhaust manifold, or both.

ISX15 and X15 turbo failures often accompany manifold cracking and occur in the same mileage window, and replacing only one leaves the other as a ticking clock. Replacing both together eliminates two of the most common ISX15 / X15 failure points in a single installation, saves significant shop labor, and ensures both components are matched for optimal exhaust flow and VGT performance from day one.

Bundle and save. Purchasing the ISX15 / X15 turbo and manifold together saves money over buying each separately, cuts total shop labor by doing both jobs in one teardown, and gives you everything necessary for a clean, complete installation. Whether your truck is emissions-intact or already deleted, we have the right manifold configuration: EGR or Non-EGR. If you only need the turbo, see our standalone HE400VG turbo (5459710 replacement). If you only need the manifold, see our ISX15 EGR exhaust manifold or ISX15 Non-EGR exhaust manifold.

Important: This kit does NOT fit HE451VE applications. The HE451VE (OEM PN 2882112 / 3796351) uses a different compressor cover and actuator configuration. If your current turbo is an HE451VE, contact Diesel Power Source® before ordering.


Why Replace the Turbo and Manifold Together

On Cummins ISX15 and X15 engines, turbo failure and manifold cracking often occur in the same mileage window. A cracked or warped manifold creates exhaust leaks that starve the turbo of drive pressure and increase EGTs. A failing turbo with sticking VGT vanes or actuator issues creates backpressure spikes that accelerate manifold cracking. You are already removing the same components to do either job; replacing both at the same time is simply the smarter use of shop time and money.

The DPS high-flow ISX15 / X15 manifold increases exhaust flow approximately 22%, reduces EGTs by approximately 75-100°F, and delivers measurably earlier turbo spool under load. The new HE400VG turbo with a fresh actuator restores proper VGT function, stabilizes backpressure, and protects the new manifold. Upgrade to the HE470VG 70mm compressor option and you add improved airflow, lower EGTs, and more HP capability, all in the same bolt-on installation.


What's Included in This Package

HE400VG VGT Turbocharger (Replaces OEM 5459710)

  • Two compressor options: HE467VG (67mm, 550-625+ HP) or HE470VG (70mm, 525-675 HP)
  • 7-blade forged machined compressor wheel (FMW)
  • 11-blade turbine wheel (72mm inducer, 68mm exducer)
  • Brand-new electronic VGT actuator (not remanufactured), pre-calibrated
  • New intake air temperature sensor
  • New gaskets
  • No core charge

The HE467VG 67mm compressor matches the largest factory wheel size and is a direct performance replacement: spools the same as stock with improved build quality and durability. The HE470VG 70mm is exclusive to Diesel Power Source® and is not available from OEM or other aftermarket suppliers. The larger 70mm wheel moves more air at lower turbine speeds, reducing heat and extending turbo life. Recommended for applications above 500 HP, heavy haulers, and any owner who wants more headroom from the platform.

DPS High-Flow ISX15 / X15 Exhaust Manifold

  • Press-fit 3-piece expansion design for thermal durability
  • Increases exhaust flow approximately 22% over the factory manifold
  • Reduces EGTs approximately 75-100°F under load
  • Approximately 200 RPM earlier turbo spool, noticeable on grades and heavy pulls
  • High Silicon Molybdenum Ductile Iron (HSMD) construction
  • Available in EGR and Non-EGR configurations
  • Available with 1,000° or 1,800° ceramic coating

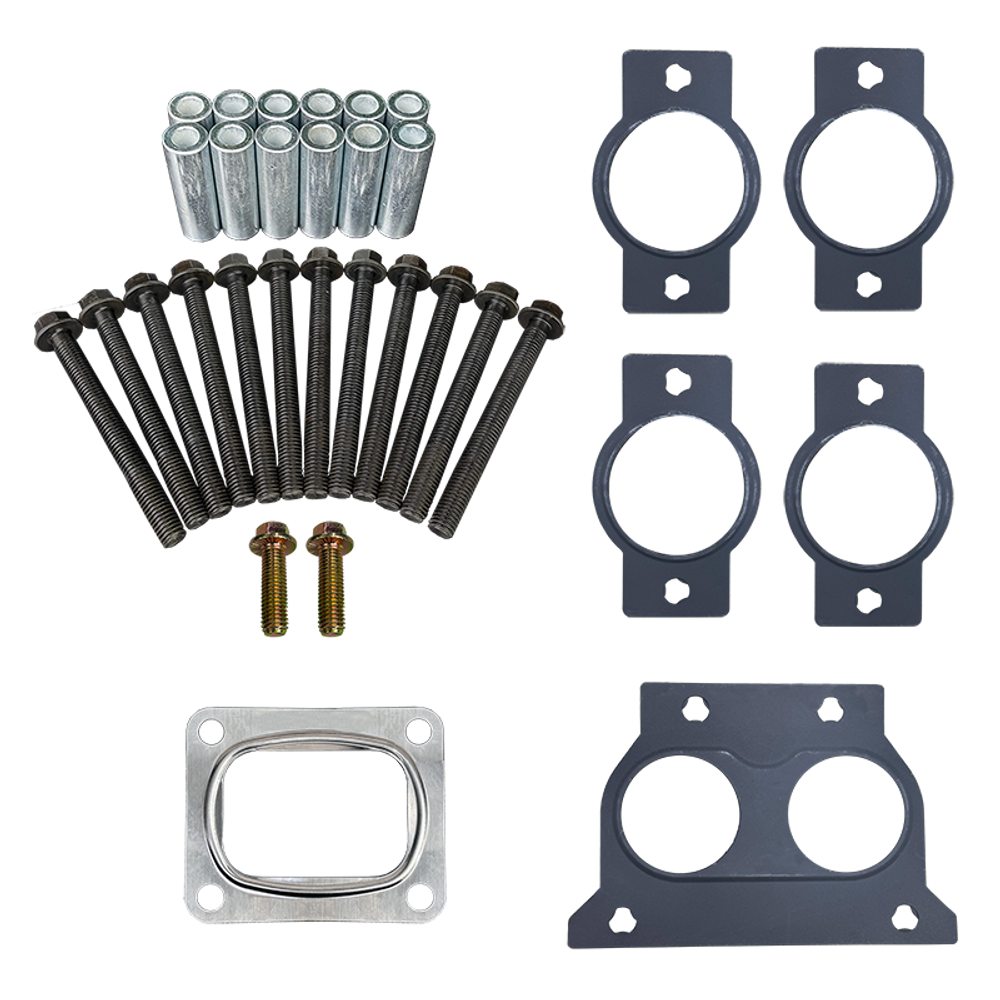

Exhaust Manifold Hardware and Gasket Kits

  • 12 manifold studs and 12 serrated flange nuts (exhaust manifold stud and nut kit)
  • 5 manifold-to-head gaskets (1 center, 4 end)
  • EGR bellows gasket (EGR manifold kits only)
  • Turbo mounting hardware: 4 turbo studs and 4 serrated flange nuts
  • Turbo flange gasket and turbo oil drain gasket
  • Fits ISX15 CM2250, CM2350, and CM2450 trucks
  • Exceeds OEM specification for sealing and durability

Manifold Selection Guide

Non-EGR, 1,000° coating

  • Emissions / EGR Configuration: Without emissions (deleted / Non-EGR)
  • Coating: Standard ceramic
  • Best For: Deleted trucks, cost-effective option

Non-EGR, 1,800° coating

  • Emissions / EGR Configuration: Without emissions (deleted / Non-EGR)
  • Coating: High-temp Cerakote
  • Best For: Deleted trucks, maximum heat protection

EGR, 1,000° coating

  • Emissions / EGR Configuration: With emissions (EGR intact)
  • Coating: Standard ceramic
  • Best For: Emissions-intact trucks, cost-effective

EGR, 1,800° coating

  • Emissions / EGR Configuration: With emissions (EGR intact)
  • Coating: High-temp Cerakote
  • Best For: Emissions-intact trucks, maximum heat protection

The 1,800° Cerakote coating provides the highest level of thermal protection and is recommended for trucks operating in sustained high-load conditions such as heavy hauling, mountain grades, or hot-climate operations. The 1,000° standard ceramic coating provides excellent heat resistance for standard commercial duty cycles.


Turbo Compressor Options

HE467VG (Stock Size)

  • Compressor: 67mm inducer, 7-blade FMW
  • HP Range: 550-625+ HP
  • Recommended Use: Direct stock replacement, fleet use, emissions-intact trucks. Recommended over the 70mm for automatic trucks below 525 HP.

HE470VG (70mm) - DPS Exclusive

  • Compressor: 70mm inducer, 7-blade FMW
  • HP Range: 525-675 HP
  • Recommended Use: Performance upgrade, heavy hauling, increased airflow and lower EGTs vs. stock 67mm, 525-675 HP

ISX15 / X15 VGT Fault Codes: Common Codes That Lead to Turbo Replacement

VGT actuator fault codes on ISX15 and X15 engines are frequently misdiagnosed as actuator-only failures. In many cases the underlying cause is a worn or sticking turbo (OEM PN 5459710) combined with actuator overload. If your engine is showing any of the codes below, the turbo and actuator should be evaluated together, and replaced together for the most reliable repair.

Engine / ECM Cummins Code SPN / FMI Meaning
ISX15 CM2250 2449 641 / 13 VGT Actuator Controller - Out of Calibration
ISX15 CM2250 2387 641 / 7 VGT Actuator Driver Circuit (motor) - Not Responding
ISX15 CM2350 1894 641 / 9 VGT Actuator Driver Circuit - Abnormal Update Rate
ISX15 CM2350 2198 641 / 11 VGT Actuator Driver Circuit - Root Cause Not Known
X15 CM2450 2449 641 / 13 VGT Actuator Controller - Out of Calibration
X15 CM2450 6432 641 / 14 VGT Actuator Controller - Special Instructions
X15 CM2450 4956 6713 / 13 VGT Actuator Software - Out of Calibration
X15 CM2450 5177 6713 / 9 VGT Actuator Software - Abnormal Update Rate

Code 2449 (SPN 641 / FMI 13) is the most common cross-platform VGT code on both CM2250 and CM2450 engines. See the full troubleshooting guide: X15 Turbo Actuator Codes - What They Mean and When to Replace


Common ISX15 / X15 Failures This Kit Solves

  • Cracked or warped exhaust manifold causing exhaust leaks, smoke at the manifold, and reduced turbo efficiency
  • Failed VGT turbo (5459710) or actuator causing low boost, turbo position faults, or black smoke
  • VGT fault codes: SPN 641 (codes 2449, 2387, 1894, 2198, 6432) indicating actuator or turbo failure
  • Laggy turbo response from worn turbo bearings or sticking VGT vanes
  • Leaking manifold joints from thermal cycling and OEM gasket deterioration
  • Repeated turbo failures caused by a cracked manifold starving the turbo of proper exhaust drive pressure

About the Manifold Joint Seal

Every DPS multi-piece manifold uses a hard, metal-to-metal press-fit seal at each joint: no gasket. The seal tightens through thermal expansion and performs best at driving temperatures (750°F and higher). Minor leakage at cold or idle is normal and expected on any joint-style manifold and is not a sign of a defective part.

Every manifold is pressure-tested leak-free at room temperature before it leaves our facility. For a full explanation of how the seal works, why soapy-water idle tests are not a valid diagnostic, and how the multi-piece design outlasts single-piece manifolds, see:

Understanding DPS Multi-Piece Exhaust Manifolds


Fitment

This kit fits 2016-2025 Cummins ISX15 and X15 engines on CM2250 (some years), CM2350, and CM2450 platforms. Verify your ESN with DPS before ordering. Compatible with Freightliner, Peterbilt, Kenworth, Volvo, International, and Western Star platforms. Jake brake / engine brake functionality is fully preserved. After installation, re-torque all manifold and turbo bolts after the first 100 miles at operating temperature.

Select your manifold configuration at checkout: EGR (emissions intact) or Non-EGR (deleted). Select your coating level: 1,000° or 1,800°. Select your turbo compressor size: 67mm or 70mm.

Not compatible with HE451VE turbo applications. If your current turbo carries OEM part number 2882112 or 3796351, contact DPS before ordering.

Fitment Verification Required: If your current turbo has BOTH of the following, this HE400VG turbo will NOT fit your application: (1) an elongated compressor cover, and (2) an actuator with two coolant ports. See the fitment verification image in the product gallery. If you are unsure, submit your ESN and our team will confirm the correct turbo for your engine.

Cummins HE400VG turbo incorrect fitment elongated compressor cover and dual coolant ports on actuator identify HE451VE incompatible application


Warranty

This Diesel Power Source® turbo and manifold package includes a 1-year / 100,000-mile warranty on the turbocharger (whichever occurs first) and is backed by our technical support team.

Warranty registration is required within 14 days of purchase. The QR code inside the product package links directly to the registration form, or register at dieselpowersource.com/install-instructions-product-support/.
