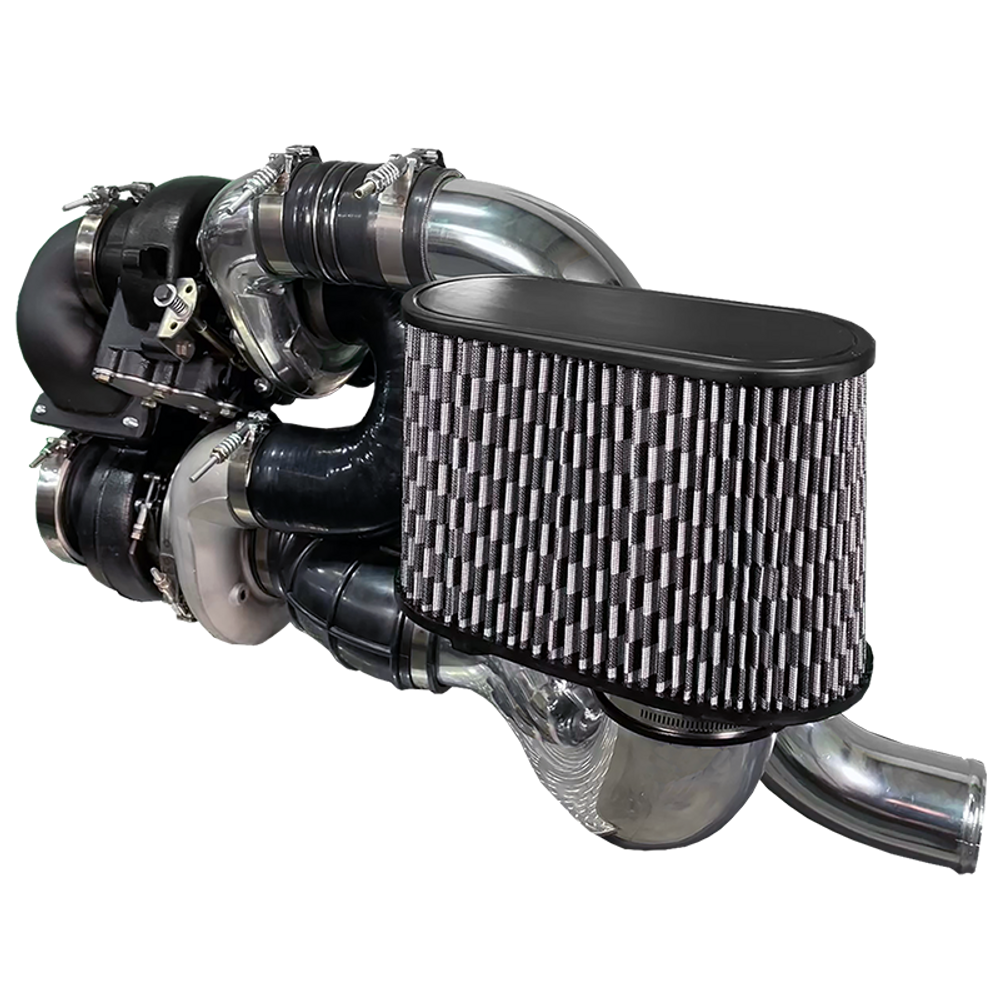

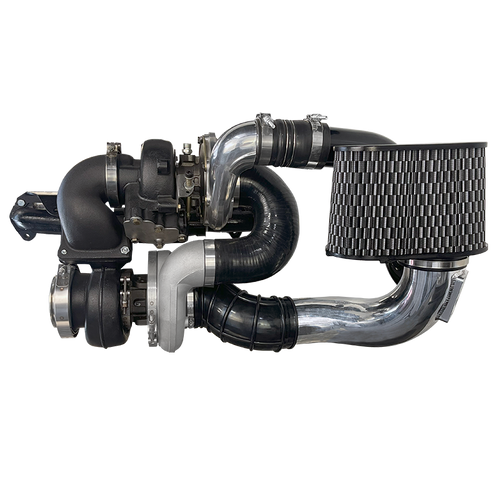

Fits 2003 - 2007 Cummins CR S480 Twin (Compound) Twin Turbos For Dodge Cummins, Billet Milled Wheel
Stage 4B- S363/68/12 over S480 (Max HP 675)
Click here to select the correct compound turbo setup for you:
This 5.9 cummins twin turbo kit is the most unique and innovative Twin Turbo Kit available today, with features like:
Diesel Power Source, Twin/Compound Turbo Kit, performs excellent when Racing, Towing, or Sled Pulling, but is very driveable. SPOOL UP IS SIMILAR TO STOCK, while raising airflow significantly. Customers are amazed at the spool up, and driveability they get from such a high performance kit. **SPOOL UP IS VERY SIMILAR TO STOCK TURBO.
EGT's are typically reduced by 300-500 degrees, over a single turbocharger.
Boost pressure will typically exceed drive pressure, which can't typically be done with a single turbocharger (with a single turbo, drive pressure is typically about double boost pressure).
Horsepower, and torque are increased throughout the entire RPM band, and significantly increased in mid and upper range.
Specifically tuned for 350 to 800 horsepower applications.
This Twin/Compound Turbo Kit was designed on CAD Software, using CFD (Computational Fluid Dynamics) Testing. You will not find a more high tech kit on the market today. Everything fits like it was built from the factory.
Kit includes: Air Filter, Cast Iron Elbow (carries exhaust from the secondary to the primary turbo), Support Bracket for S400 Turbo, 3-Piece Exhaust Manifold (pre-tapped ports for pyro), Complete Air Intake including Air Filter, Silicone Charge Pipe (on Low-pressure end), Chrome Plated Aluminum Charge Pipe, 1-DPS 63 Turbo (small turbo,63/68/12 ),1 - Turbo (large turbo 80mm compressor wheel/ 96m turbine wheel, 1.32 A/R Housing), 2-Steel Braided High Temp Oil Supply Lines, 2-Oil Drain Lines & Fittings, Turbo & Manifold Gaskets, Oil Line Adapters, Mounting Bolts, Exhaust Adapter (from Turbo to exhaust pipe), V-Band Clamps, High Torque T-Bolt Clamps, Low Torque Clamps, 4" Exhaust Downpipe, Installation Instructions.
Reasons Why Our Compound Turbos Work So Well
The air entering the cylinders is cooler, because dual compressors work together within their most efficient zone. The boost air is typically over 100 cooler than from a single turbo.
The air entering the cylinder is at higher pressure, bringing the boost pressure and exhaust drive pressures near a 1:1 ratio. The intake stroke can actually produce power.
There are additional air molecules in the cylinder which do not get involved in combustion which carry the heat out of the cylinder (similar to how a jet engine is cooler).
It has more complete combustion in the cylinders because there’s more air in the cylinder to burn all of the fuel.
** On 2nd Gen trucks, head studs are highly recommended for boost pressure over 48 psi, and fire rings recommended for boost pressure over 55 psi. This system is capable of well over 60 psi, but is adjustable to below 50 psi, depending on truck.
** On 3rd Gen trucks, head studs are highly recommended for boost pressure over 55 psi, and fire rings recommended for boost pressure over 65 psi. This system is capable of well over 60 psi, but is adjustable to below 50 psi, depending on truck.
** Most S300 and S400 turbos can be used with this kit.
